ITAWATT Flow F10
ITAWATT Flow F10
Features
High-Capacity 10.24 kWh Storage
Provides 10.24 kWh of rated energy for extended residential backup and storage of surplus electricity generated by a solar system.
Long-Life LiFePO₄ Technology
Lithium Iron Phosphate cells offer dependable performance, enhanced thermal stability and at least 6,000 cycles under specified operating conditions.
200A Charge and Discharge Capability
Supports a maximum charge and discharge current of 200A with a 1C rating for responsive energy delivery during demanding household use.
High-Capacity 10.24 kWh Storage
Provides 10.24 kWh of rated energy for extended residential backup and storage of surplus electricity generated by a solar system.
Long-Life LiFePO₄ Technology
Lithium Iron Phosphate cells offer dependable performance, enhanced thermal stability and at least 6,000 cycles under specified operating conditions.
200A Charge and Discharge Capability
Supports a maximum charge and discharge current of 200A with a 1C rating for responsive energy delivery during demanding household use.
Intelligent Battery Management
An integrated Battery Management System monitors essential operating conditions and helps protect the battery against abnormal voltage, current and temperature conditions.
Smart Inverter Communication
Smart Inverter Communication

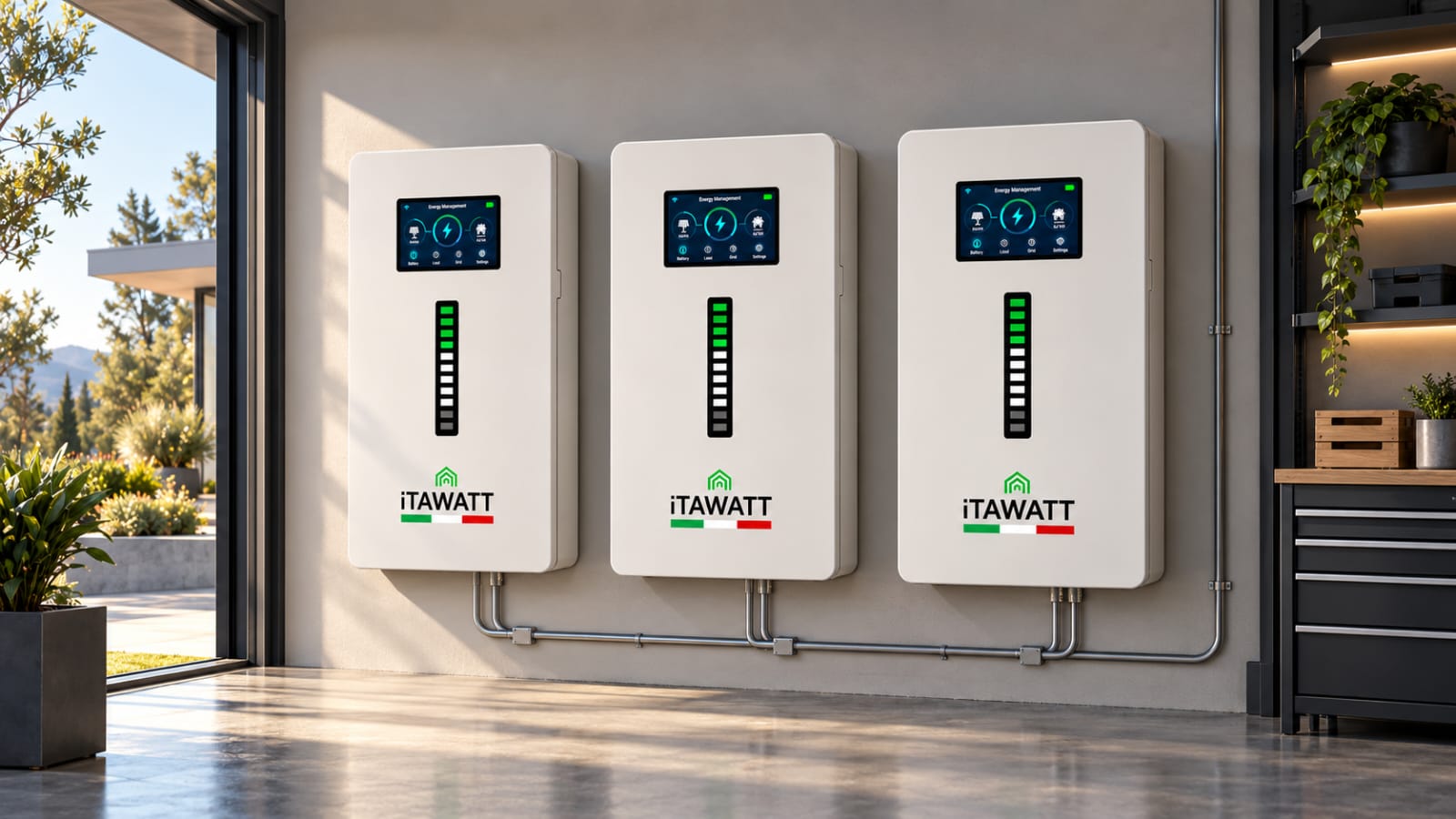

Expandable Energy Capacity
Connect up to 15 compatible batteries in parallel to expand the rated storage capacity to as much as 153.6 kWh, subject to inverter compatibility and professional system design
ITAWATT Technical Specifications
| Product Name | ITAWATT FLOW 10.24 |
|---|---|
| Model | 51100 |
| Rated Energy | 10.24 kWh |
| Battery Capacity | 200Ah |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 51.2V |
| Float Voltage | 58.4V |
| Equalization Voltage | 56V |
| Discharge Cut-Off Voltage | 44.8V |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Maximum C-Rate | 1C |
| Dimensions | 720 × 445 × 188 mm |
| Net Weight | 49.7 kg |
| Maximum Parallel Connection | Up to 15 batteries |
| Communication Ports | CAN / RS485 / RS232 |
| Charging Temperature | 0°C to 55°C |
| Discharging Temperature | -10°C to 55°C |
| Cycle Life | ≥6,000 cycles at 80% DoD, 0.5C and 25°C |
| Monitoring Functions | Wi-Fi and display screen |
| Documentation / Certifications | CE, UN38.3 and MSDS |
| Warranty | 5 Years |
Advantages
Extended Home Backup
Greater Solar Energy Utilization
Greater Solar Energy Utilization
