ITAWATT Flow F5

F5
51.2V
5.12 kWh
IP20
Lithium Iron Phosphate (LiFePO₄)
The ITAWATT Flow 5 is a 5.12 kWh LiFePO₄ solar battery designed for residential solar energy storage and reliable home backup power. Its 51.2V 100Ah configuration provides dependable energy for everyday household needs, while intelligent BMS protection, Wi-Fi monitoring and multiple inverter communication ports make the battery safer and easier to manage. With more than 6,000 cycles and support for up to 15 batteries in parallel, ITAWATT FLOW 5 gives homeowners a durable and expandable solution for reducing grid dependence and making better use of solar energy.
Request A Quote

ITAWATT Flow F5

F5
5.12 kWh
IP20
51.2V
Lithium Iron Phosphate (LiFePO₄)
The ITAWATT Flow 5 is a 5.12 kWh LiFePO₄ solar battery designed for residential solar energy storage and reliable home backup power. Its 51.2V 100Ah configuration provides dependable energy for everyday household needs, while intelligent BMS protection, Wi-Fi monitoring and multiple inverter communication ports make the battery safer and easier to manage. With more than 6,000 cycles and support for up to 15 batteries in parallel, ITAWATT FLOW 5 gives homeowners a durable and expandable solution for reducing grid dependence and making better use of solar energy.
Request A Quote

Features

5.12 kWh Residential Energy Storage

Stores up to 5.12 kWh of energy for household backup, solar self-consumption and greater energy independence during grid interruptions.

Long-Life LiFePO₄ Technology

Lithium Iron Phosphate cells deliver enhanced thermal stability, dependable performance and at least 6,000 cycles under specified operating conditions.

100A Charge and Discharge Capability

Supports a maximum continuous charge and discharge current of 100A with a 1C rating for responsive residential energy delivery

5.12 kWh Residential Energy Storage

Stores up to 5.12 kWh of energy for household backup, solar self-consumption and greater energy independence during grid interruptions.

Long-Life LiFePO₄ Technology

Lithium Iron Phosphate cells deliver enhanced thermal stability, dependable performance and at least 6,000 cycles under specified operating conditions.

100A Charge and Discharge Capability

Supports a maximum continuous charge and discharge current of 100A with a 1C rating for responsive residential energy delivery

Smart Inverter Communication

CAN, RS485 and RS232 communication ports enable integration with a wide range of compatible hybrid and off-grid solar inverters

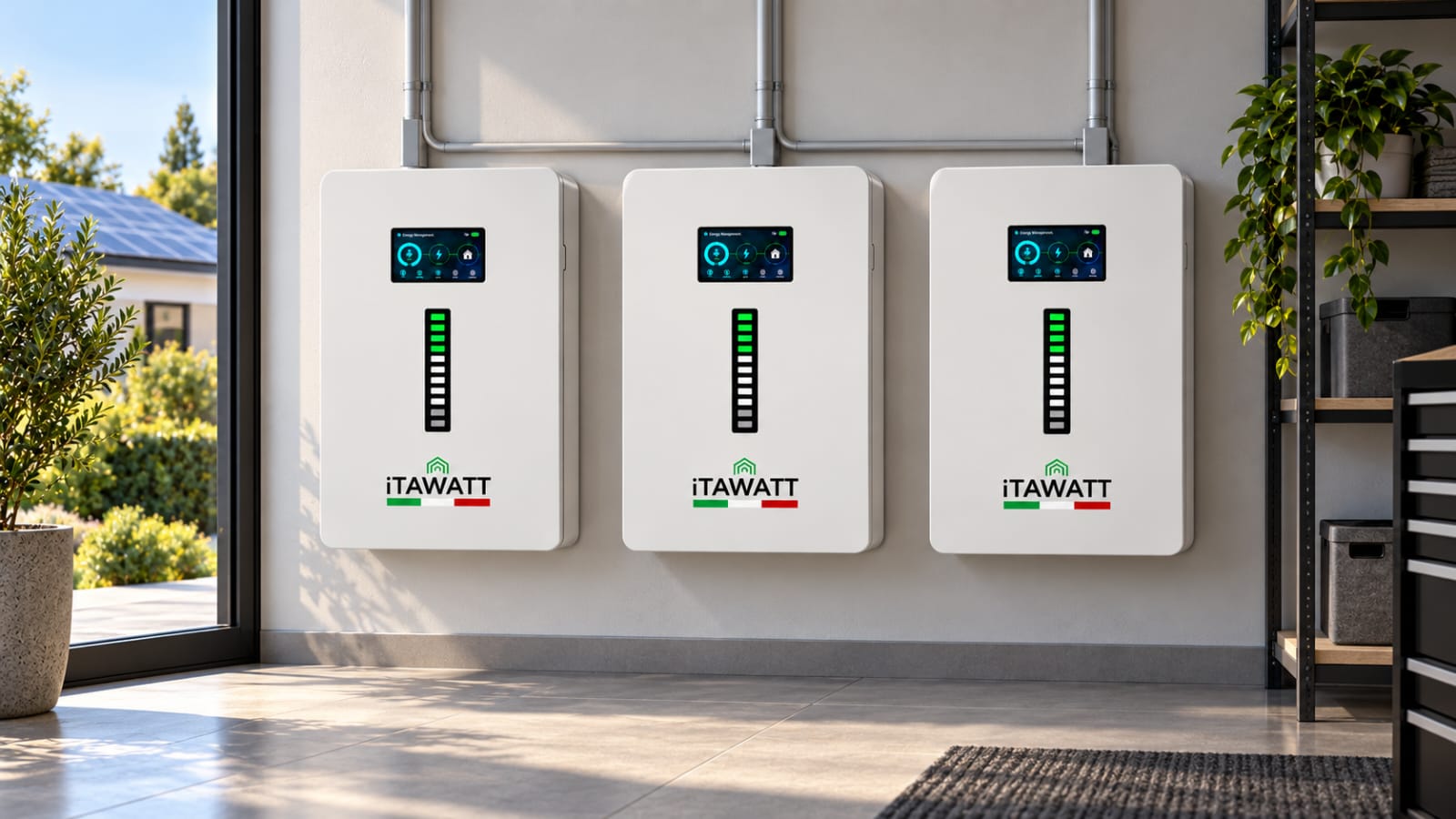

Expandable Energy Capacity

Expandable Energy Capacity

Wi-Fi and Display Monitoring

The integrated display and Wi-Fi functionality provide convenient access to battery status, performance information and operating conditions.

ITAWATT Technical Specifications

ParameterSpecification
Product NameITAWATT FLOW 5
Model51100
Product CategoryResidential Lithium Energy Storage Battery
Battery TypeRechargeable Lithium-Ion Battery
Battery ChemistryLithium Iron Phosphate (LiFePO₄ / LFP)
Nominal Energy5.12 kWh
Nominal Voltage51.2 V DC
Rated Capacity100 Ah
Cell Configuration16S1P
Cell Number16 PCS (16S1P)
Nominal Cell Voltage3.2 V
Nominal Energy Calculation51.2 V × 100 Ah = 5.12 kWh
Limited Charge Voltage58.4 V DC
Discharge Cut-Off Voltage44.8 V DC
Standard Charge Current20 A
Standard Discharge Current50 A
Maximum Continuous Charge Current100 A
Maximum Continuous Discharge Current100 A
Maximum C-Rate1C
Battery Management SystemIntegrated Intelligent BMS
BMS Protection FunctionsOvercharge, over-discharge, overcurrent,
short-circuit and temperature protection
Communication InterfacesCAN / RS485 / RS232
Wi-Fi MonitoringSupported
App MonitoringSupported
Local DisplayIntegrated Display Screen
Installation TypeIndoor Residential Installation
Protection RatingIP20
Charging Temperature Range0°C to 55°C
Discharging Temperature Range−10°C to 55°C
Storage Temperature Range0°C to 40°C
Operating Humidity0–95% RH, Non-Condensing
Cycle Life≥6,000 Cycles at 80% DOD, 0.5C and 25°C
Dimensions720 × 445 × 188 mm
Net Weight49.7 kg
Certifications / DocumentsCE, UN38.3 and MSDS
Warranty5 Years
Main FunctionsWi-Fi Connectivity, App Monitoring,
Integrated Display and Intelligent Battery Management
Typical ApplicationsSolar Energy Storage, Home Backup Power,
Self-Consumption and Load Management
View Data Sheet

Downloads

View All

Advantages

Dependable Home Backup Power

Maintain access to stored energy during load-shedding and unexpected grid interruptions. Actual backup time depends on the connected load and usable battery capacity.

Make Better Use of Solar Energy

Store surplus solar electricity generated during the day and use it later when sunlight is limited or electricity demand increases.

Make Better Use of Solar Energy

Store surplus solar electricity generated during the day and use it later when sunlight is limited or electricity demand increases.

Expand as Your Energy Needs Grow

Begin with one 5.12 kWh battery and add compatible units later, creating a flexible energy storage system without replacing the original battery.
